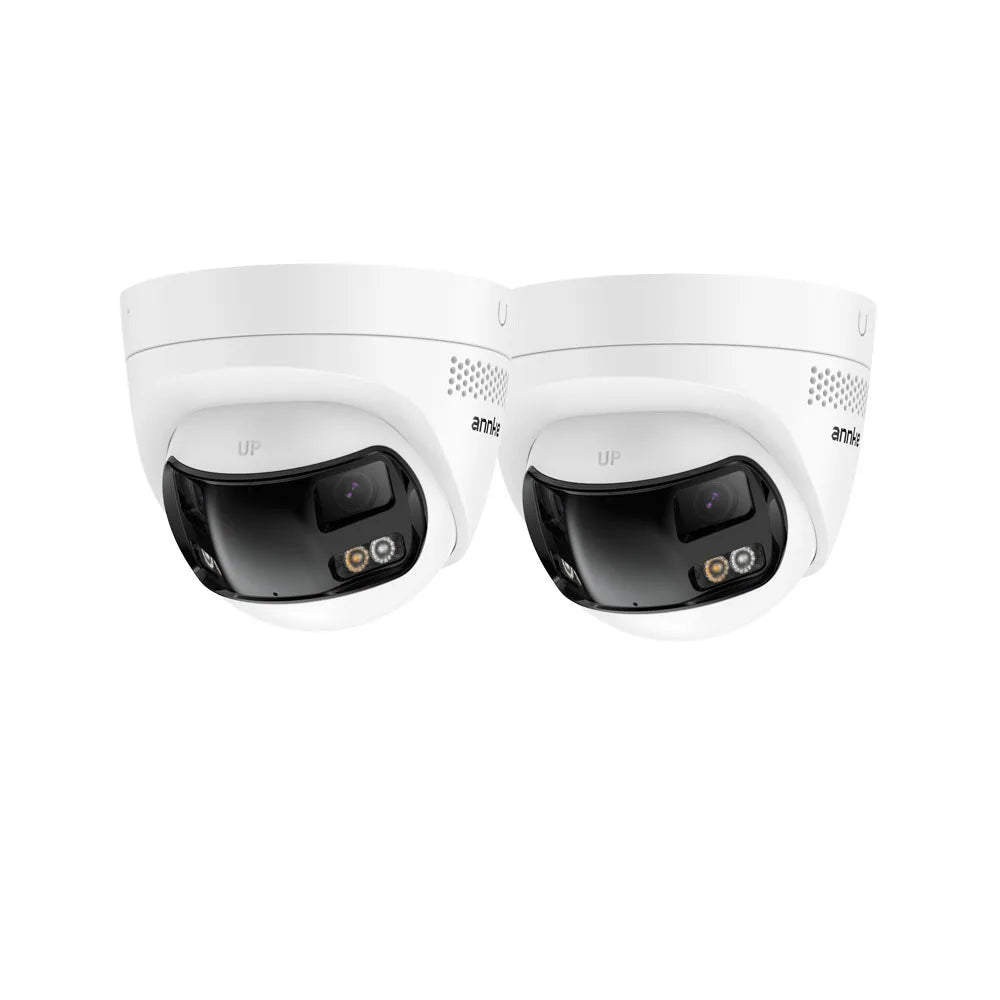

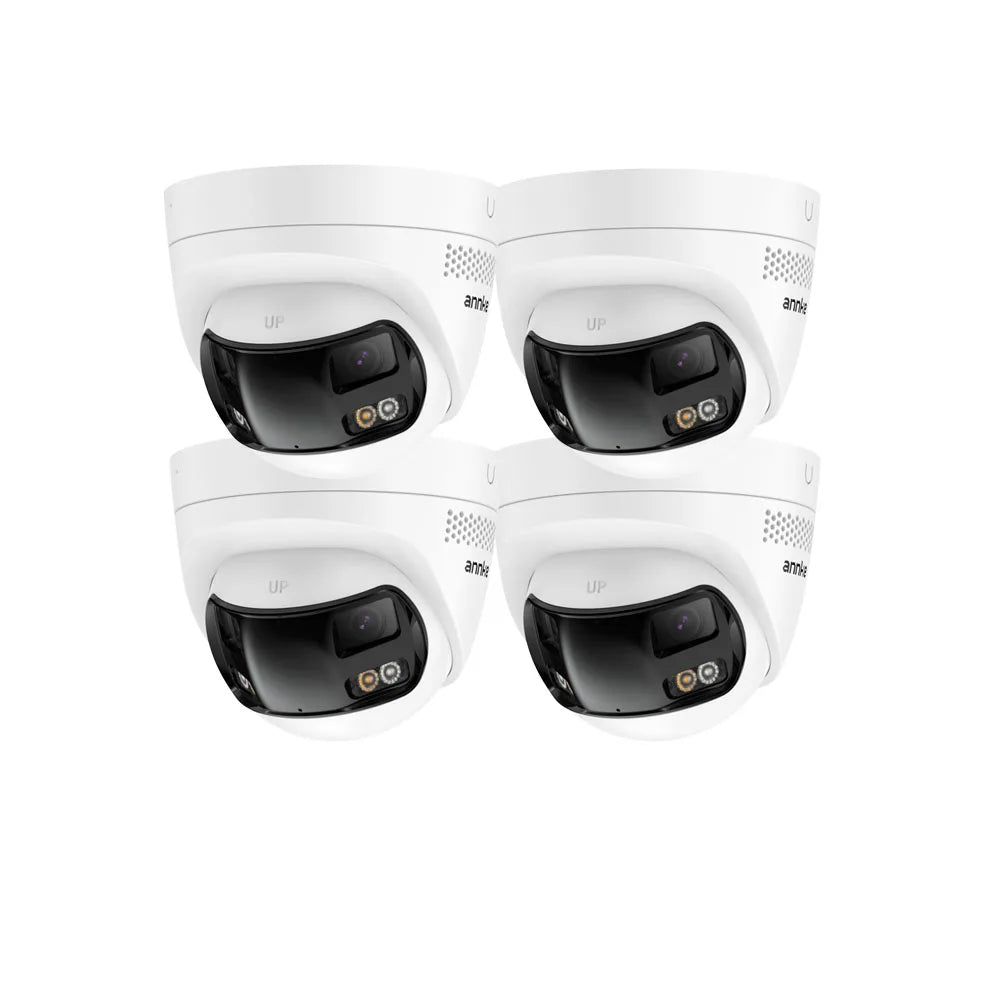

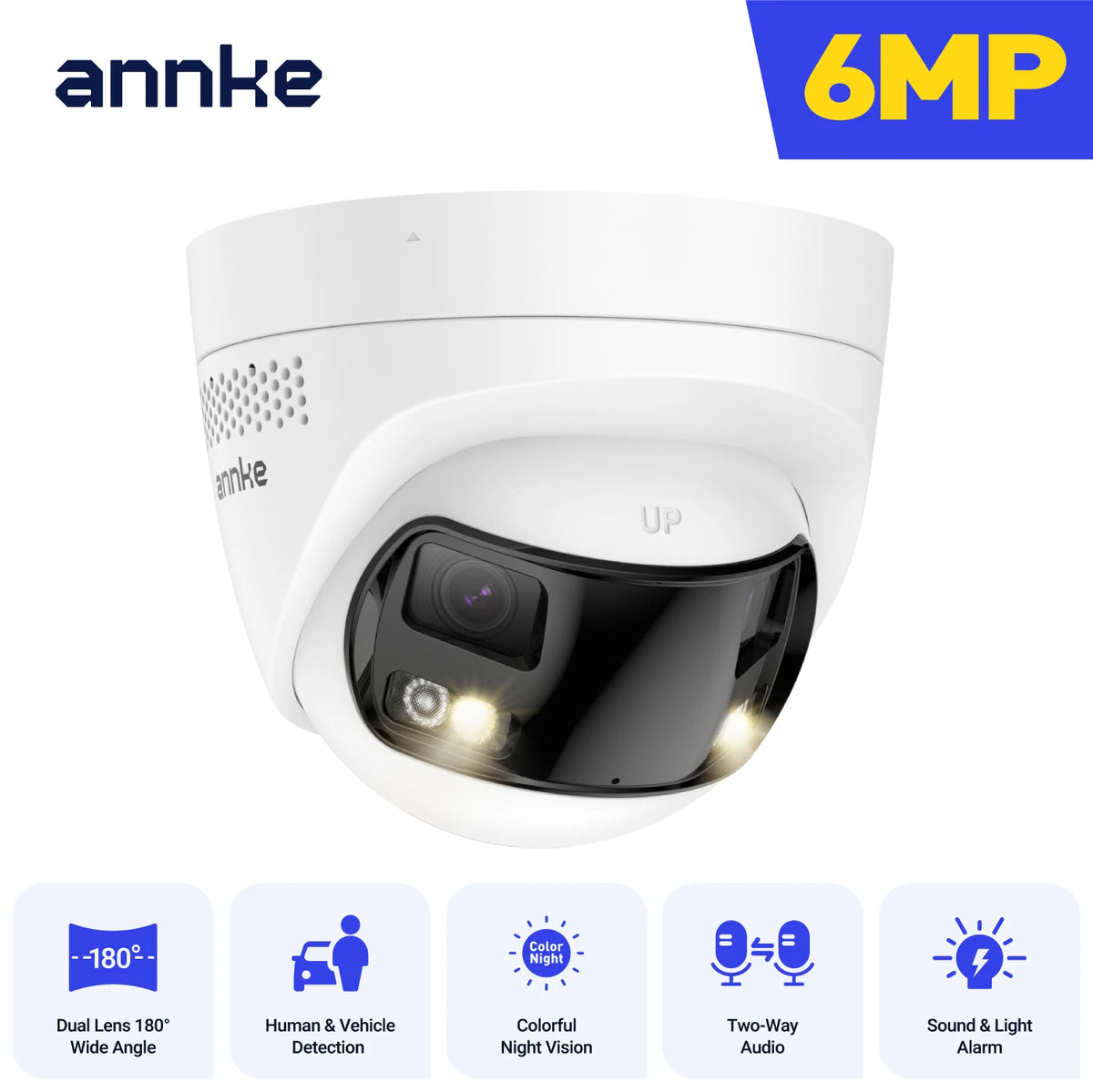

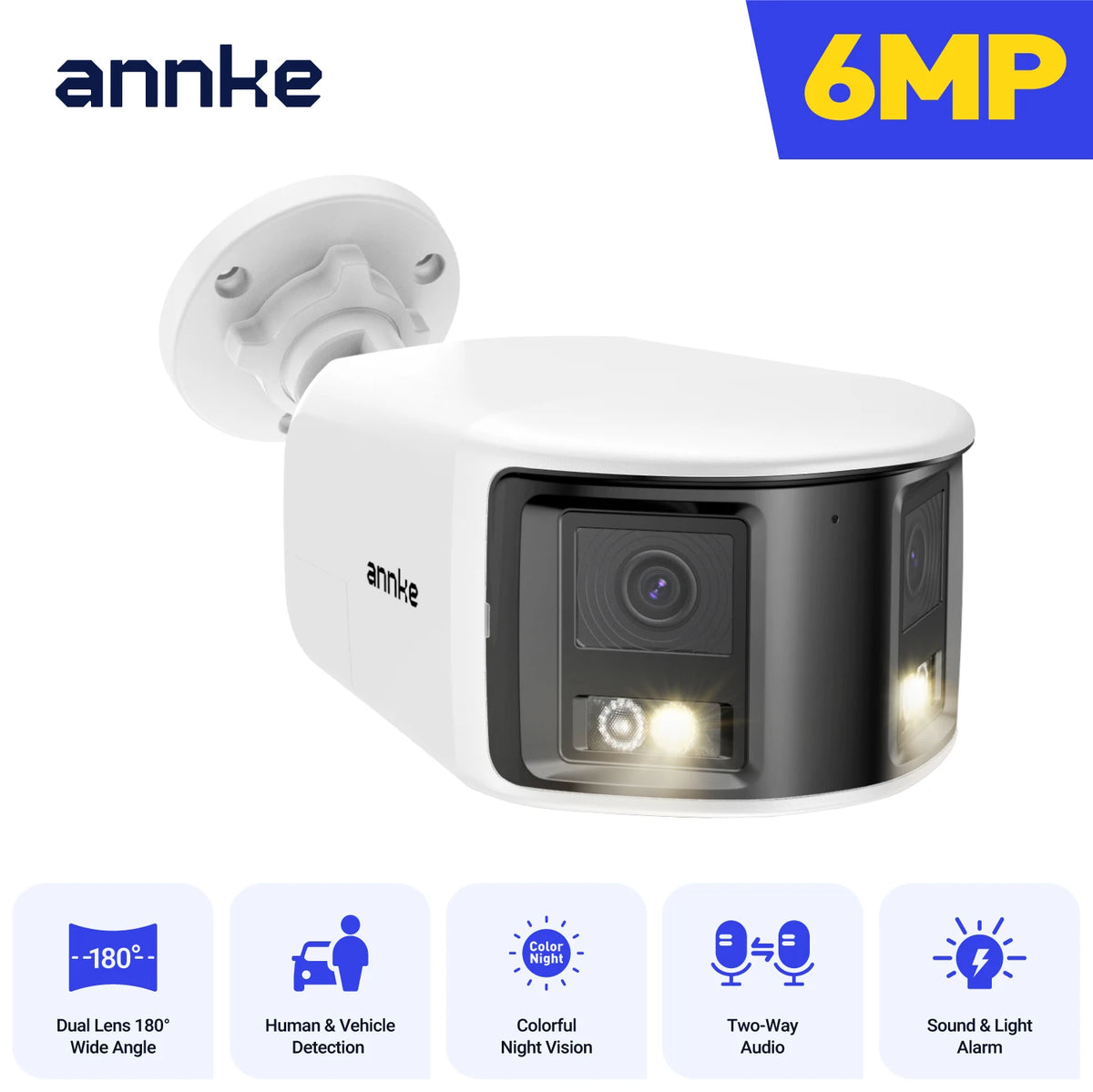

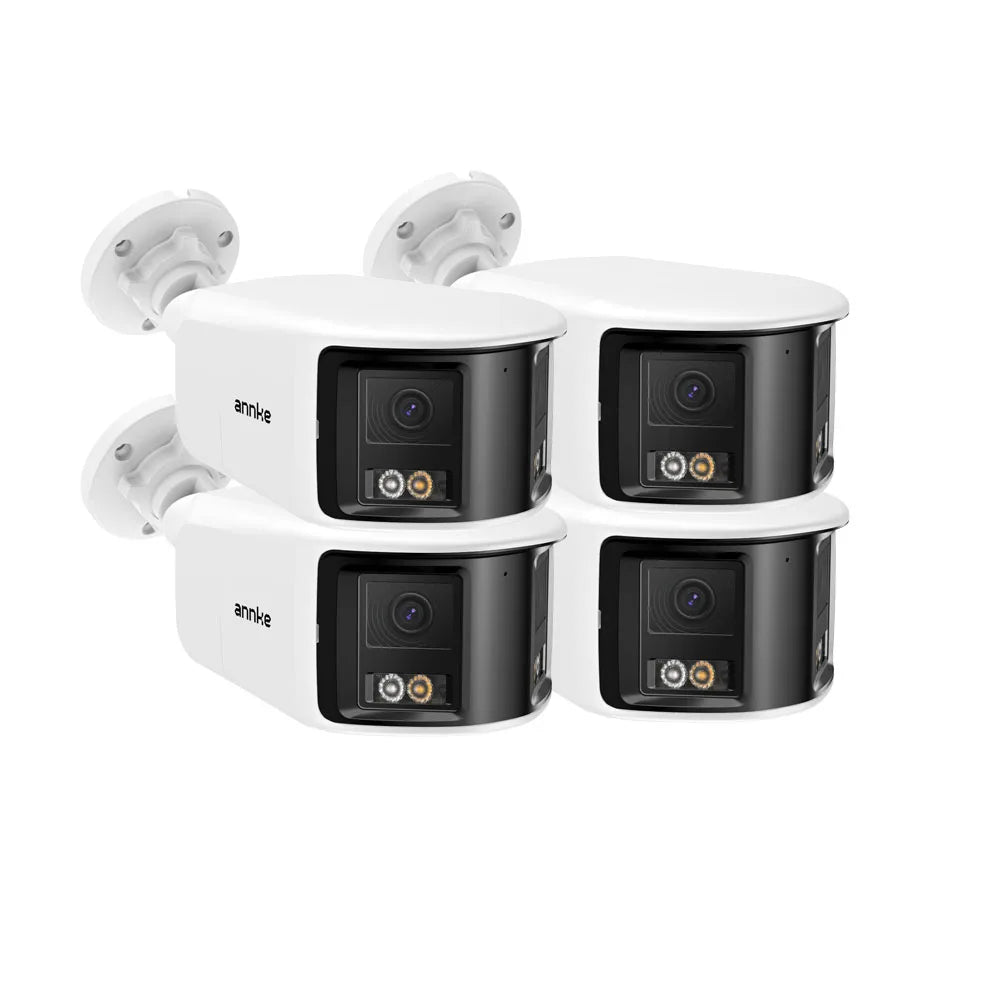

ANNKE 6MP Dual-Lens Security Camera 180° Panorama Turret Camera Color Night Vision Human/Vehicle IP67 ONVIF Security CCTV Camera
ANNKE 6MP Dual-Lens Security Camera 180° Panorama Turret Camera Color Night Vision Human/Vehicle IP67 ONVIF Security CCTV Camera
Couldn't load pickup availability
SPECIFICATIONS
AI Functions: Motion Detection
Alarm Type: Local Alarm
App name: Other
Audio Output: 1CH BNC
Brand Name: ANNKE
Certification: CE
Color: WHITE
Color Night Vision: Yes
Connectivity: IP/Network Wired
High Definition: 6.0 Megapixels
High-concerned chemical: none
IP Rating: IP67
IR Distance(m): IR light up to 30m
Image Sensor: 1/2.4" Progressive Scan CMOS
Installation: Wall Mounted,Pendant Mount
Lens (mm): 2.8-8mm
Lens Quantity: Dual Lens
Megapixels: 6mp
Minimum Illumination(Lux): 1/2.4" Progressive Scan CMOS
Model Number: I91EV/I91ET
Motion detection 2.0: Supoort, include Human & Vehicle detection
Movement Range(Pan): -10°-180°
Movement Range(Tilt): Other
Operating Temperature: -10°-60°
Optical Zoom: NONE
Origin: Mainland China
Power Supply: With Poe
Power Supply(V): 12 V DC
Rechargeable Battery: NONE
Scene: Indoor and outdoor
Sensor: CMOS
Sensor Brand: Sony
Shell Material: Plastic
Smart home platform: NONE
Special Features: Waterproof / Weatherproof
Style: Turret Camera
Supplement Light Range: White light up to 30 m, IR light up to 30m
Supplement Light Type: Smart light, white light, IR light
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
TF Card: None
Two-Way Audio: Built-in Microphone & Speaker
Type 1: Surveillance Camera
Type 2: CCTV Camera
Type 3: Night Vision Camera
Type 4: dual lens panorama IP camera
Video Compression Format: H.265
Viewing Angle : 180 °
Weatherproof Rating: IP67
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: NONE
Zoom type: none

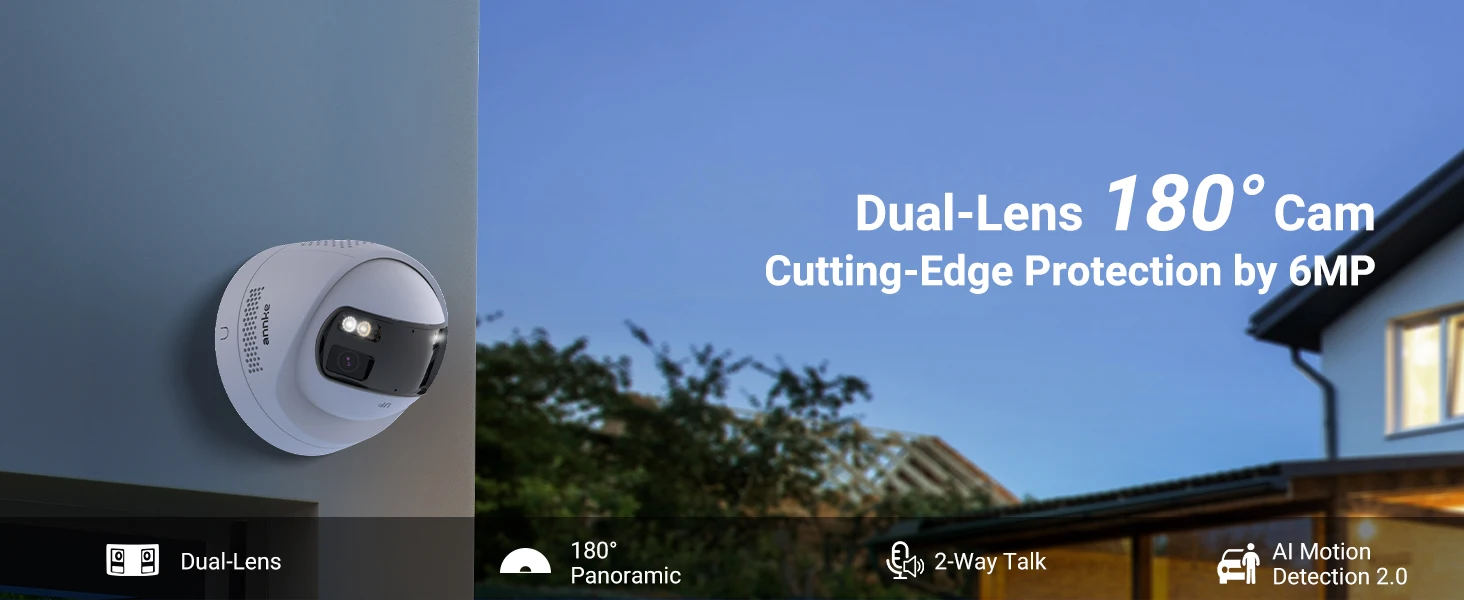

180° Wider View Features 6MP Clarity
This dual-lens security cam combines two 1/2.5" BSI sensors into ONE stunning 180° feed without any distortion! Farewell to those regular cams of 90° views in 1080p clarity; cuz this is an ideal choice for your home or business!
Next-Level AI Smart Motion Detection
Once this surveillance camera detects human & vehicle motion, you'll receive real-time alerts. For your greater relief, you may set the line/zone to ward off the unwelcome by triggering the customizable siren.
Intelligent Dual-Light Camera
Three lighting modes are available: intelligent fill light, white light fill light, and infrared fill light. The fill light distance is 30 meters.
Intelligent Fill Light: At night, infrared light fills the image in black and white. When someone or a vehicle passes by, it switches to white light fill light to create a color image. After the event, it switches back to infrared light fill light for a black and white image. Color images are used to capture more information during important moments.
Reachable 2-Way Audio
2-way talk frees you from staying at home and enables you to answer the delivery men or warn the unwelcome even though you're a thousand miles away. The instant pops-up always reminds you of keeping an eye on your home, too.
Sound and Light Alarm
It supports both audible and strobe light alerts, which can be triggered as part of an alarm linkage action or manually via a mobile app. The system offers 12 default alarm sounds to choose from, and users can also record and upload custom sounds for personalized alerts, enhancing both functionality and entertainment value.
IP Camera |
||
Camera |
Image sensor |
2×1/2.5" Progressive Scan CMOS |
Max resolution |
3632 × 1632 |
|
Main Stream |
50 Hz: 20 fps (3632 × 1632) |
|
Sub Stream |
50 Hz：20 fps（1200 × 536, 960 × 432） |
|
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Built-in Microphone |
Built-in Microphone, record with audio |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 97 dB |
|
Lens |
Dual lens: 2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON) |
|
Angle of View |
Horizontal FOV: 180°, Vertical FOV: 77° |
|
Supplement Light Type |
Smart light, white light, IR light |
|
Supplement Light Range |
White light up to 30 m, IR light up to 30m |
|
Motion detection 2.0 |
Supoort, include human & vehicle detection |
|
Image Parameters Switch |
Yes |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120dB WDR |
|
Network Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP |
|
API |
Support Open Network Video Interface protocol, version 19.12 |
|
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
|
Audio Alarm |
Support, parameters adjustable,support custom audio, can be triggered from APP |
|
Flashing Alarm |
White light, frequency adjustable, can be triggered from APP |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate, remote access, IP Address Filter |
|
General |
Housing |
Metal&Plastic, white color |
Operating Power |
PoE (802.3af)，max 11.5W, |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|

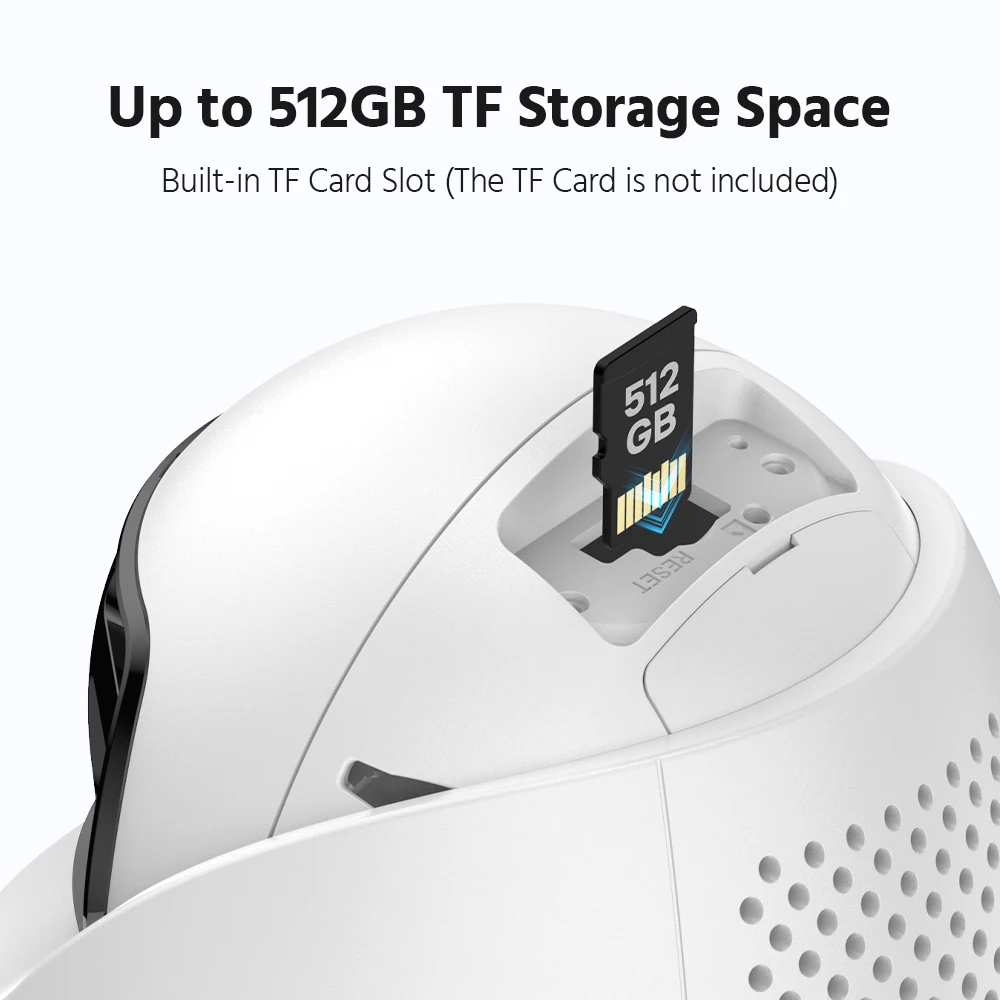

Storage |
Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|

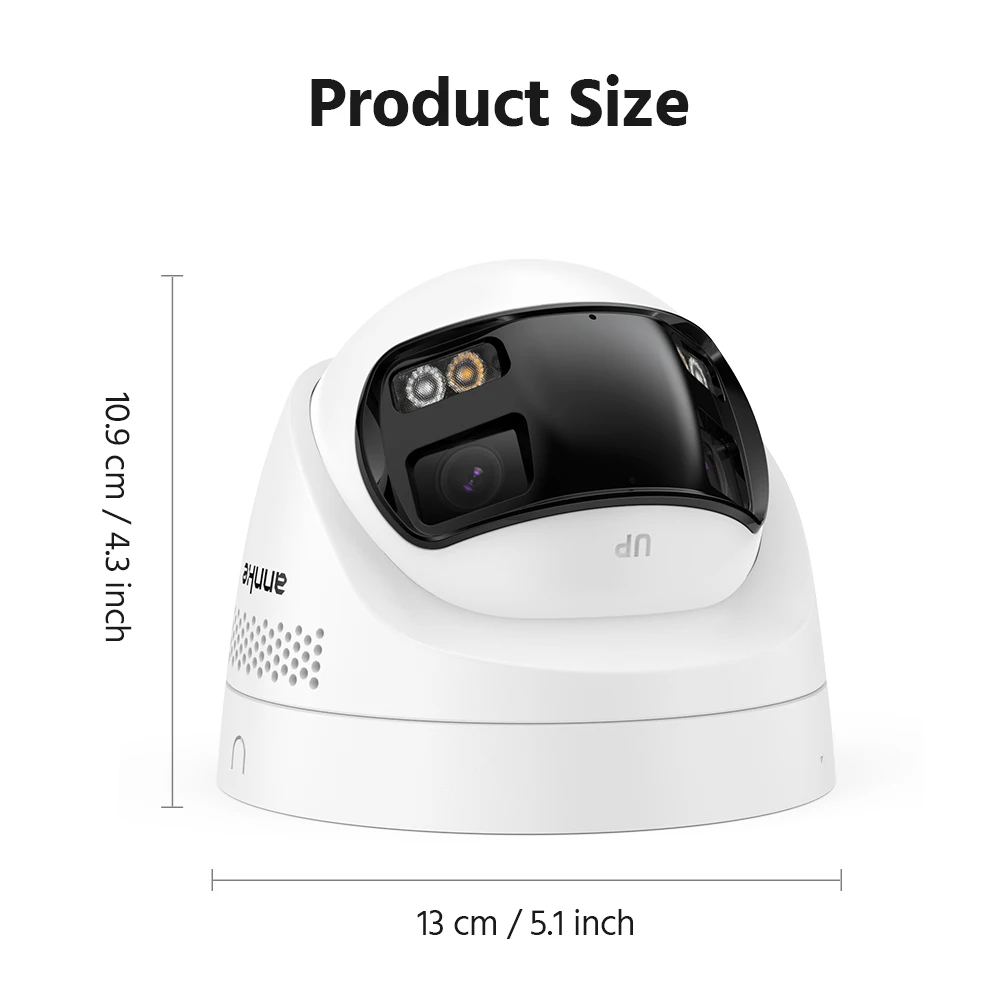

Dimension (L x W x H) |
Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3") |
|
Weight |
Approx. 580 g (1.3 lb.) |
|
